WP SERIES

Exit Trim

The WP Series Grade 2 Lever delivers seamless compatibility with rim and surface vertical rod exit devices across multiple brands, featuring eight common series adaptors for versatile installation flexibility. Built for demanding commercial environments, it provides a 3-hour fire rating for critical safety compliance and comes backed by a 2-year mechanical warranty for reliable long-term performance.

Benefits

  • Access your way — with mobile credentials, access cards, fobs, and/or pin codes.
  • Eliminate risk & costs of lost & duplicated keys, while gaining visibility & control of Access Events.
  • Unlimited mobile credentials that can be issued or revoked from anywhere with access software.
  • Direct to Wi-Fi connectivity simplifies installation, eliminating costly wire runs and the complexity and cost of gateways and hubs.
  • Offers the convenience of connecting to cloud-based software to manage and monitor your facility’s access needs from anywhere.
  • Patented ‘heartbeat interval’ allows configurable updates & extends battery life up to 2+ years, plus low battery warnings.

Exit Trim Key Features

Exit Device Compatibility

  • Rim & surface vertical rods
  • Multiple exit device brands
  • (8) common series adaptors

High Quality Durability

  • 3-hour fire rating
  • 2-year mechanical warranty

Convenient Credential Options

  • Mobile, card, fob, pin code
  • Key backup

Remote Management & Notifications
With access software

Uninterrupted Door-Access
Stores programming in case of power outage or offline network

Easy Installation

  • Designed for easy installation

Commercial — Custom Keying
Match existing keying systems, add high security options, or convenience of Keyed Alike.

PIN CODES

(4-10 digits, mixed length accepted)

Remotely lock and manage

REMOTE LOCK

(Unlock via app)

smart card access

SMARTCARD/FOB

mobile credentials

MOBILE CREDENTIALS

KEY OVERRIDE

Cylinders

Conventional, Restricted,
High Security, SFIC

Levers

(default)

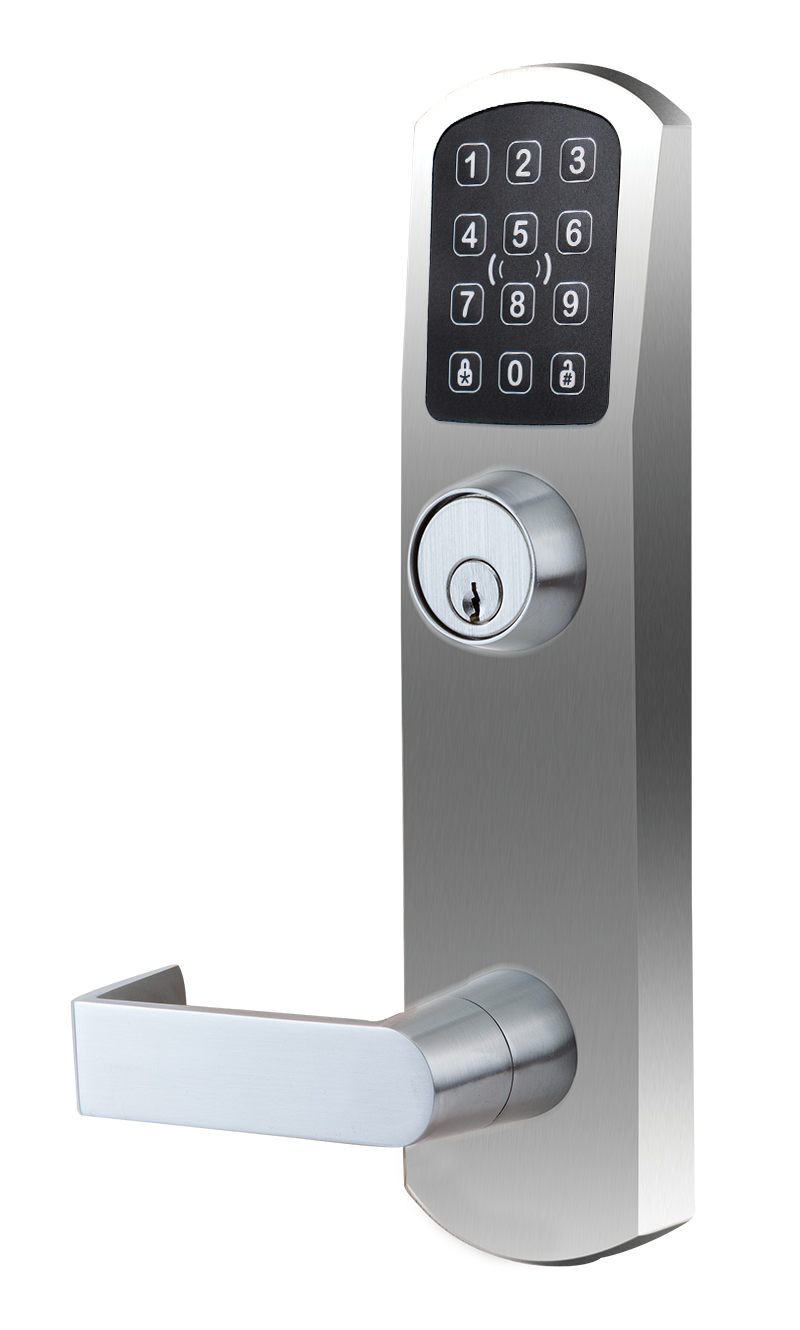

WP Series Exit Trim



Door Thickness 1 3/8″ to 2 1/4″ thick
Door Strike ASA (1 1/4″ x 4 7/8″ default), T-Strike (1 1/8″ x 2 3/4″)
Handling Non-handed ( ‘pin’ field reversible)
Credentials Pin Code, Fob/Card (Mifare 13.56 MHz), Mobile Credentials, Key Backup
Keyways Conventional, Keyed Alike, SFIC, Restricted, High Security, UL437
Access Events Up to 4,000 events stored on device when offline, up to 365 days with cloud access software.
Schedules Up to 28 Lock (device) Schedules (e.g. auto-unlock M 8am, lock M 5pm)
Up to 40 User Access Schedules (e.g. M-F 9-5)
Up to 20 Access Exception Schedules (e.g. Holidays, Shutdowns)
Audible Audible indicator of key press, configurable
Visual Keypad backlit upon key press
Batteries 4 AA Alkaline batteries, Battery life based on usage conditions, up to 2+ years
Connectivity Options Direct to Bluetooth via mobile device (send updates at the lock)
Direct to Wi-Fi via wireless access point with internet connection (up to every 15 minutes)
BLE Communication Bluetooth® Low Energy (BLE) v4.2, v5.2
Wi-Fi Communication 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)
Security: WEP, WPA, WPA2, and WPA3 supported
Port: 433
Encryption Advanced Encryption Standard (AES), 256-bit
Transport Layer Security (TLS) version 1.2
Operating Environment -20° to 65°C, 0-95% Humidity (non-condensing
Fire Rating (UL/CUL 10C) UL/CUL 10C 20-Minutes
Certifications ADA Compliant (Americans with Disabilities Act)
FCC Part 15
Warranty 2-year Hardware, 1-year Electronics
COO Designed & Assembled in USA
